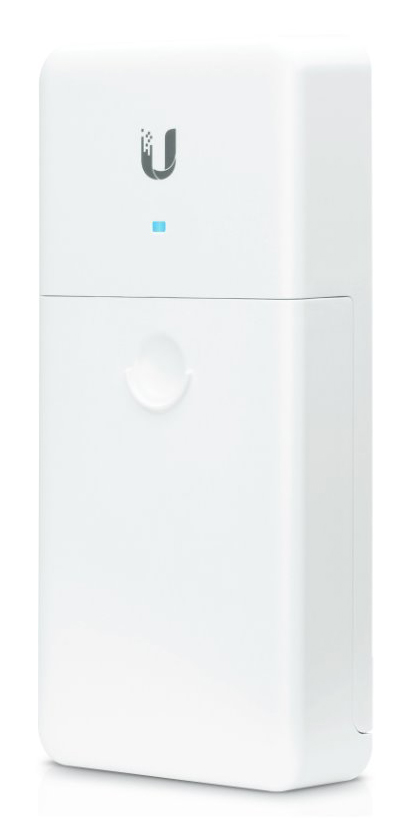

UBIQUITI PoE NanoSwitch N-SW, 4-Port 10/100/1000Mbps, outdoor
N-SW is very simple non managable PoE switch with 4x Gigabit LAN with passive PoE powering.
-Gigabit 24V Passive PoE in port
-Gigabit 24V Passive PoE out ports
-Outdoor, water resistant enclosure
-Non-managed switch
-4Gbps total non-blocking line rate
Τεχνικά Χαρακτηριστικά:
Networking Interfaces: (4) 10/100/1000Mbps RJ45 Ports
Switchning capacity [Gbps]: 4
Typical Power Consumption: 1.5W
Max. Power Consumption: 30W
Power Method: Passive 24V, 2-Pair PoE In
Power Supply: POE-24-30W-G-W PoE Adapter (Not Included)
LEDs: Speed/Link/Activity (All Ports)
PoE Interfaces: Passive 24V, 2-Pair PoE In
Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (30W)
Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
Passive PoE Voltage Range: 21.6 - 30V
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: 30 to 70° C
Dimensions: 94 x 32 x 196mm
Weight: 271 g
Περιεχόμενα συσκευασίας
NanoSwitch
Screw
2x Metal ring
Quick start quide
