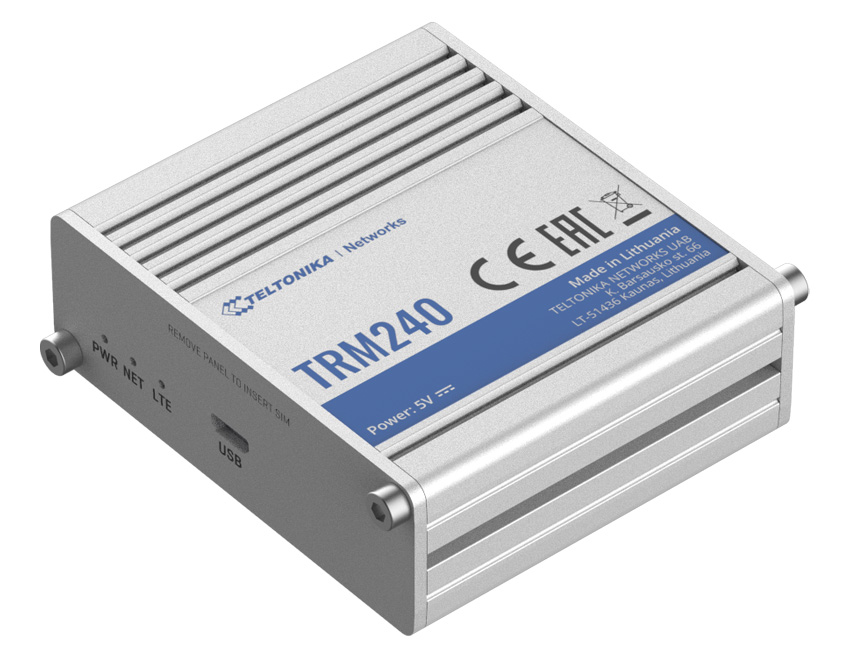

TELTONIKA Industrial cellular modem TRM240, LTE Cat 1, USB
-Connectivity, 4G/LTE (Cat 1), 3G, 2G -Durability, Rugged aluminium housing -USB Interface for internet accsess -Efficiency, Low power consumption -Compactness, Small size, easy installation -Ease of use, Controlled using Network manager
Τεχνικά χαρακτηριστικά Mobile LTE (Cat1) / 3G / 2G SIM slot Mini SIM (2FF) Antenna connector 1 x SMA for LTE Operating Voltage 5V - powered via microUSB Power consumption 3.2 W Max Configuration interface microUSB LED indicators Power, Network and LTE status LEDs Operating temperature -40 °C to 75 °C Operating humidity 10 % to 90 % non-condensing Casing material Aluminium housing Ingress Protection Rating IP30 Dimensions 64.5 x 74.5 x 25 mm (L x W x H) Weight 131 g Management software Windows Connection Manager (NDIS driver) USB Serial Driver Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x RIL Driver Android 4.x/5.x/6.x/7.x/8.x NDIS Driver Windows 7/8/8.1/10 Gobinet Driver Linux 2.6/3.x/4.1~4.14 Linux qmi wwan Driver 3.x (3.4 and later)/4.1~4.14 Protocols TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL
-Connectivity, 4G/LTE (Cat M1), NB-IoT, 2G -Durability, Rugged aluminium housing -USB Interface for internet accsess -Efficiency, Low power consumption -Compactness, Small size, easy installation -Ease of use, Controlled using Network manager
Τεχνικά χαρακτηριστικά Mobile: LTE (Cat-M1) / NB-IoT / EGPRS SIM slot: Mini SIM (2FF) Antenna connector: 1 x SMA Operating Voltage: 5V - powered via microUSB Power consumption: 3.6 W Max Configuration interface: microUSB LED indicators: Power and Network status LEDs Operating temperature: -40 °C to 75 °C Operating humidity: 10 % to 90 % non-condensing Casing material: Aluminium housing Ingress Protection Rating: IP30 Dimensions: 64.5 x 74.5 x 25 mm (L x W x H) Weight: 130 g Management software: Windows Connection Manager (NDIS driver) USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x RIL Driver: Android 4.x/5.x/6.x/7.x/8.x
Περιεχόμενα συσκευασίας TRM250 board 1x Mobile antenna (swivel, SMA male) Micro-USB cable (0.8 m) 1x hex key QSG (Quick Start Guide)
