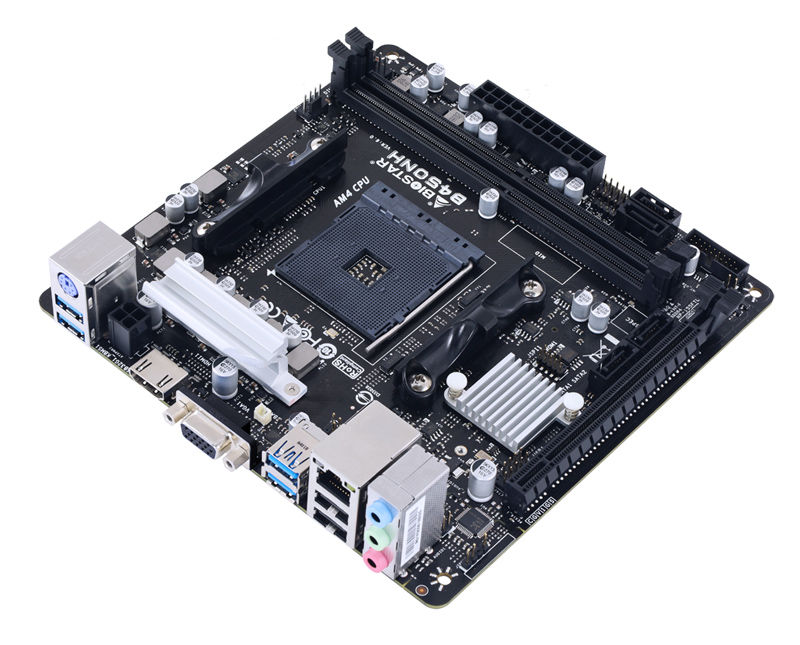

BIOSTAR μητρική B450NH, 2x DDR4, AM4, MiniITX, GbE LAN, Ver. 6.0
Η B450NH της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset B450 της AMD.
Διαθέτει 2 εξόδους γραφικών: VGA και HDMI.
-Supports AMD Ryzen CPU/APU
-AMD B450 single chip architecture
-Supports 2-DIMM DDR4-1866/2133/2400/2667/2933(OC)/3200(OC)/3600(OC)/4000(OC) up to 64G maximum capacity
-Realtek Gigabit LAN
-Supports USB 3.2 Gen1
-Supports PCIe M.2
-Supports HDMI 4K resolution
Τεχνικά χαρακτηριστικά
Chipset: AMD B450
CPU support: Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Memory:
-Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
-Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)
-2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
-Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
Integrated videO: By CPU model, Supports DX12, Supports HDCP
Storage:
-4x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10
-1x M.2 (M Key) Socket:
-Supports M.2 Type 2260/ 2280 SSD module
-Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
-Supports SATA III (6.0Gb/s) SSD
LAN: Realtek RTL8111H, 10/100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC887, 7.1 Channels, High Definition Audio
USB: 6x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header), 4x USB 2.0 ports (2 on rear I/Os and 2 via internal header)
Expansion slot:
-1x PCIe 3.0 x 16 Slot:
-Supports PCIe 3.0 x 16 mode with AMD Ryzen™ processors.
-Supports PCIe 3.0 x 8 mode with AMD Ryzen™ with Radeon Vega Graphics processors.
Dimension: Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
OS support: Supports Windows 7(64it)/ 10(64bit) / 11(64bit)
Rear I/O:
1x PS/2 Mouse/ Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN port
4x USB 3.2 (Gen1) Ports
2x USB 2.0 Ports
3x Audio Jack
Internal I/O:
4x SATA III 6.0Gb/s Connectors
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x COM Port Header
1x S/PDIF out Connector
